Enigma Launchpad / Mixer

Enigma Launchpad OS is a modular control system designed for VRChat worlds. It aims to be an all-in-one solution for runtime world modification for VR event hosts. It provides a unified interface for toggling objects and materials, modifying shader properties, controlling screen shaders, displaying analytics, creating persistent presets, changing skyboxes, and more, all inside a cohesive, synced UdonSharp controller. The Launchpad is built to handle complex world and shader setups and substantially simplifies world UI creation across a wide variety of tasks. Two prefab versions are included: Enigma Launchpad (buttons only) and Enigma Mixer (buttons plus a fader system).

While several features are tailored to VRChat club environments, the system is not limited to shader workflows. It is useful for any creator who needs to control or automate elements of their world at runtime. For example, you can create a Materials Folder to swap pictures on a wall, use an Objects Folder to switch between furniture layouts, use a Properties Folder to modify light colors, add a Mochie Folder or June Folder for post-processing controls, or configure a Skybox Folder to change the environment. This removes the need for half-baked Udon scripts, difficult-to-maintain UI canvases, or tedious manual reordering of toggles.

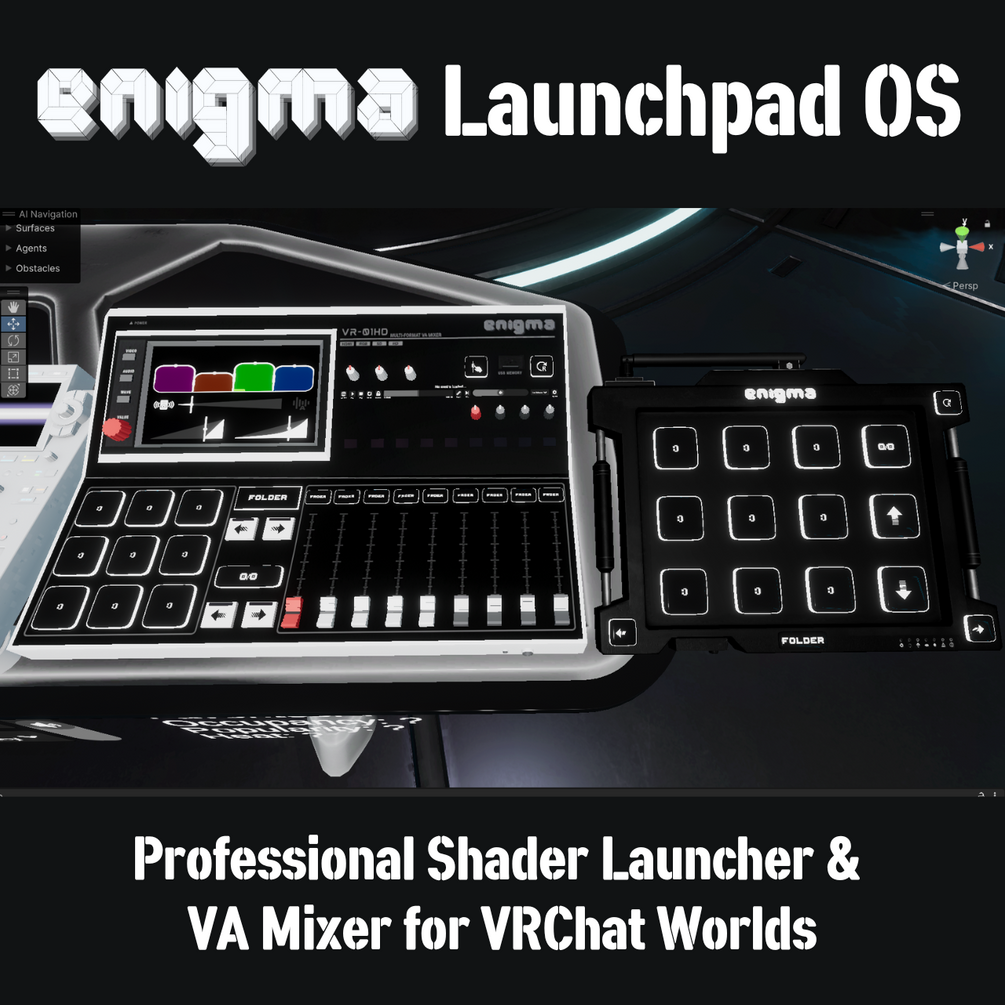

The Launchpad prefab consists of a 3x3 grid of buttons with displays, a folder display, a page display with an auto-change toggle, and directional navigation buttons. The Mixer prefab adds faders with a custom fader system, fader displays, a screen panel with multiple display modes including a custom AudioLink tablet with AutoLink, video-player controls for popular video prefabs, and more. The in-game UI is driven by folders, each assigned a Folder Type. Folder Types act as modules that define how each folder behaves. All folder navigation and paging logic are handled by the Launchpad OS.

Feature Overview

• Custom editor that significantly simplifies UI setup.

• Easy shader-launching workflow designed to support diverse world setups.

• Folder Types implementing different behaviors, including optional exclusivity (only one toggle active per folder).

• Whitelist system with optional third-party integrations. Supports manual names, OhGeezCmon Access Control (not included), ProTV Whitelists, and Flatline Whitelists.

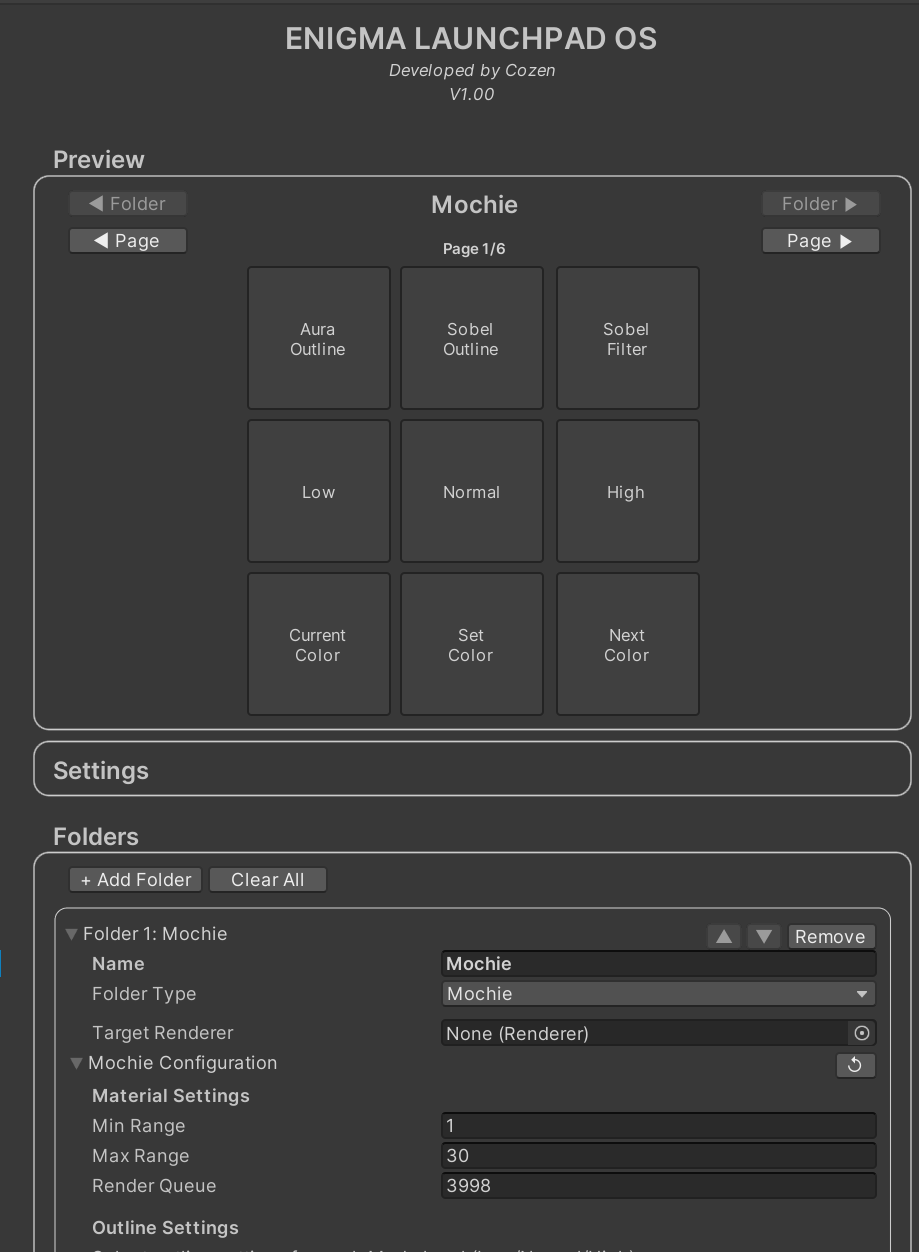

• Editor-side preview foldout that simulates the Launchpad UI to visualize folder/page layout in the editor without entering play mode.

• Built-in support for popular shader sets like Mochie Screen FX and June Shaders (must be imported separately).

• Integrates with popular tools like ProTV, VideoTXL, Access Control, AutoLink, etc.

Folder Types

Objects Folder

Each toggle changes the active state of a GameObject globally. Drag GameObjects into the list, and buttons populate automatically. Useful for furniture toggles, door states, props, and layout switching.

Materials Folder

Each toggle globally assigns a material to a configured renderer. Drag materials in and each button will set a different material. Useful for swapping posters, changing the theme of a room, etc.

Properties Folder

Each toggle sets a specific shader property to a defined value across assigned renderers. Useful for color changes, shader-driven effects, or any runtime-adjustable property.

Shaders Folder

Each toggle launches a screen-shader on a duplicated mesh renderer, avoiding manual scene setup.

Skybox Folder

Each toggle switches the world’s skybox. Drag in skybox materials and buttons populate automatically. The auto-change button cycles skyboxes at a configurable interval and can be toggled on/off from any folder.

Mochie Folder

A six-page preset layout that provides global control of Mochie screen shaders (not included). Supports most Mochie features for both standard SFX and paid SFX X versions, with +/- controls, a color selector for outline colors, AudioLink band toggles, AudioLink strength toggles, and major effect toggles. Values are configurable in the editor.

June Folder

Provides global toggles for June screen-shader modules (not included). Each toggle corresponds to a specific June module, and all module properties are exposed in the editor. Exclusivity can be handled per module or per folder depending on setup. The Launchpad handles all shader locking and setup.

Presets Folder

Allows users to save presets of toggle states in-game, including options to include or exclude specific folders from the preset. Presets can be saved to and loaded from persistent PlayerData, enabling sharing, transferring between users, or reusing personal presets across sessions. This allows coordinated multi-toggle configurations, useful for lighting/shader presets during live events.

Stats Folder

Displays world and instance statistics on button displays pulling from the VRChat API if necessary.

Fader System

Static Faders Set each fader to a property and globally modify values at runtime. Supports int/float/range/color properties. Colors support setting the degree of hue rotation, and all numeric values support default/min/max values that are auto-populated from the targeted material/renderer. Dynamic Faders Create an unlimited amount of dynamic faders, which populate on empty fader slots when a linked toggle from another folder is set. This allows you to individually control the properties for each active effect without needing to make hundreds of individual sliders.

Dependencies

Install these dependencies before importing the Enigma Launchpad package.
Launchpad Prefab:
• AudioLink (Install from Creator Companion)
Mixer Prefab:
• AudioLink (Install from Creator Companion)
• AutoLink (go to repo https://github.com/lackofbindings/AutoLink and add the VCC, then install from Creator Companion) Optional Dependencies(for a specific folder or feature):
• Mochie Screen FX enables basic Mochie layout using free Screen FX from https://github.com/MochiesCode/Mochies-Unity-Shaders, or extended layout using Patreon version at https://www.patreon.com/c/mochieshaders/posts
• June Shaders enables June Folder type, purchase from https://kleineluka.gumroad.com/l/june and complete the install process. Support for the free version will be added soon, if you would like to use the free version, use the Shaders folder instead.
• ProTV from https://protv.dev/, add the VCC and import from creator companion.
• VideoTXL from https://github.com/vrctxl/VideoTXL, add the VCC and import from creator companion.
• OhGeezCmon Access Control for adding users to the whitelist at runtime, install the package from https://github.com/OhGeezCmon/VRC-AccessControl
• Flatine Open Decks Manager at https://lavysworlds.gumroad.com/l/flatline for whitelist integration and event hosting.

Documentation

For complete documentation, visit our Documentation Site at https://cozen-official.github.io/Enigma-Launchpad-OS/

Special Thanks

Special thanks to the many world creators that beta tested this asset for me over the course of a year, especially:
- Bean from District One - https://discord.gg/DQw3r9VJjZ
- Biochemicals from Club Chemistry - https://discord.gg/DQw3r9VJjZ
- TootyFrooty and Rondogbot from Psychosis - https://discord.gg/DQw3r9VJjZ whose feedback made this all this possible.
Also special thanks to Zoey/Luka, developer of June Shaders, for her detailed help that made the optimized June Folder integration possible.

Support

For support message "cozen." on Discord or join the Enigma Discord at https://discord.gg/fvCdcpFedP

License

Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International Public License Full license text at https://creativecommons.org/licenses/by-nc-sa/4.0/deed.en
